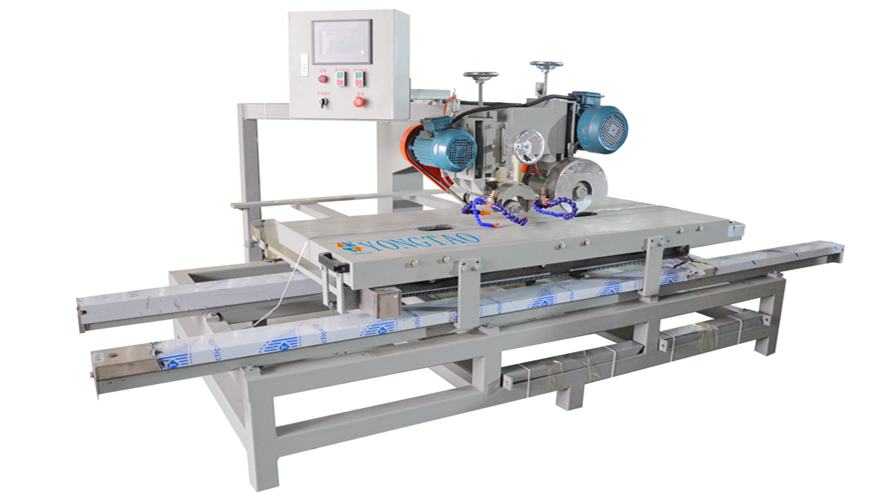

YTQS-4-1800 Manual Type CNC Tile Cutter For Large Tiles
Best tile cutter for large tiles at chinayontao.com! The machine have two cutting head, effectively avoiding the chipping when cutting. Come to Yongtao to get a quote!
Product introduction
Description of YTQS-4-1800 Manual Type CNC Tile Cutter For Large Tiles
YTQS-4-1800 Manual Type CNC Tile Cutter For Large Tiles is the latest product of Yongtao Machinery.This machine is specialized to cut big size tile. This machine is tile cutter for large tiles.The maximum processing size is 1800*1800mm.It can cut into two piece of 900*1800mm tile in one time.The machine have two cutting head,can effectively avoid the chipping when cutting.It adopts touch screen with cnc to control the baffle to adjust the cutting size.The machine use imported oil dipped high precision guide rail.Both sides of machine have two support frame,to ensure the machine cut large tile stable and accuracy.The machine have the advantage of simple operation,no chipping,high precision.It’s a popular machine for cut large size ceramic tile
Large Format Ceramic cutting machine:
Technical Parameter of YTQS-4-1800 Manual Type CNC Tile Cutter For Large Tiles
We provide you with best tile cutter for large tiles.
Machine specifications
| Cutting head | 2pcs |
|---|---|
| First motor power | 2.2kw |
| Second motor power | 4kw |
| Control method | Cnc |
| Diameter of first blade | (ø120-130mm)*20mm |
| Diameter of second blade | (ø200-250mm)*60mm |
| Guide rail | Oil dipped |
| Platform | Cast iron |
| Processing size | 1800mm |
| Size of machine | 3.55m*1.8m*1.6m |
| Total power | 6.2kw |
| Weight | 1500kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
